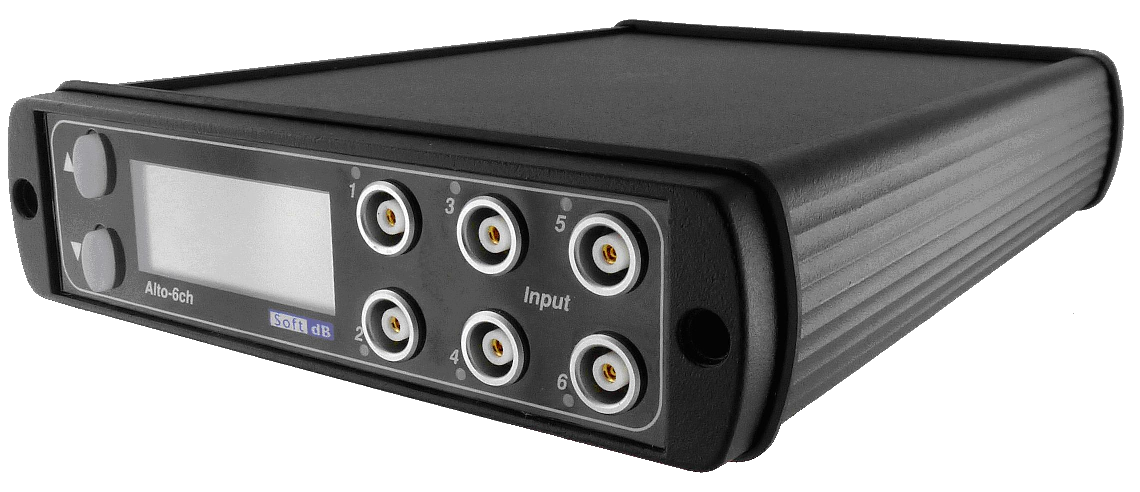

ALTO-6CH


Alto 6-ch is a 6-input, 2-output, 24-bit measurement system.

More than a simple data acquisition board, the Alto 6-ch includes a powerful DSP to handle critical computations when necessary while the data display and storage are handled by the PC through a USB 2 or an Ethernet link.
Compact, low-power and flexible, the Alto 6-ch provides professional measurements that are compatible with common acoustic and vibration standards such as 60561/60804/61672, ISO 2631, DIN 4150, and ANSI 1.43.


Main technical characteristics
Real-time Bandwidth DC to 24 kHz @ 6 channels
Dynamic Range 100 dB
Noise Floor 25 dBA, 30 dBZ for 40mV/Pascal
Input type Direct & ICP;
Communication USB 2.0 Hi-Speed & Ethernet
Dimensions & weight 190x135x35mm; 950 g.
Power Supply 12-15 volt; 15 watts
Internal Cells 6 AA-NiMH; Approximately 5 hours
OPUSTM Suite

All the OPUSTM suite can be used in conjunction with Alto 6-ch hardware: Using the Stand-Alone SLM module, the Alto 6ch can also work without PC for long term SLM measurement.
 Click here to see all OPUSTM Modules

 Download

Alto6 Spec sheet
