I-Track
Acoustic Real-Time Sound Mapping System

Innovative and easy to use
  • Freehand scanning, no grid required
    • Get sound map in few seconds
  • Sound Pressure, Sound Intensity & PI index map
  • Sound power evaluation
  • Location of leak & noise emission point
    • Application Fields
  • Industrial noise reduction
  • IndustrialArchitectural acoustics
  • IndustrialVibro-acoustic design

    		•

    Acoustical Intensity Noise Map Examples:

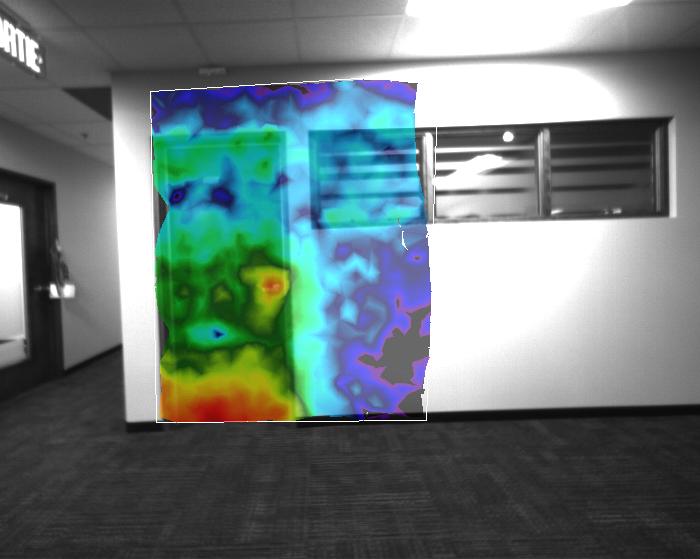

    Acoustical leak identification: Bottom of the door and windows in an office

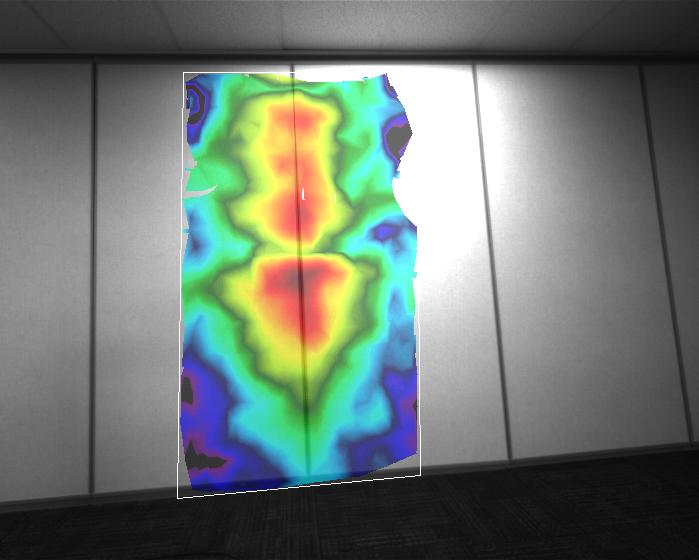

    Acoustical leak identification: Joint of knockdown walls

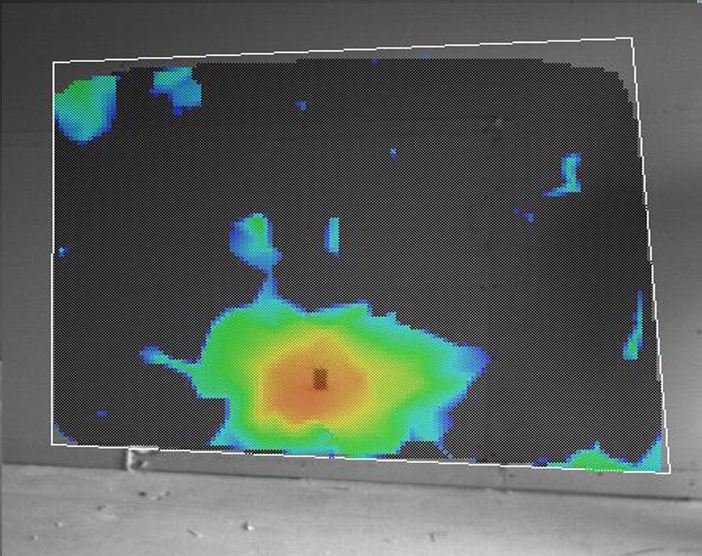

    Acoustial leak through a power socket

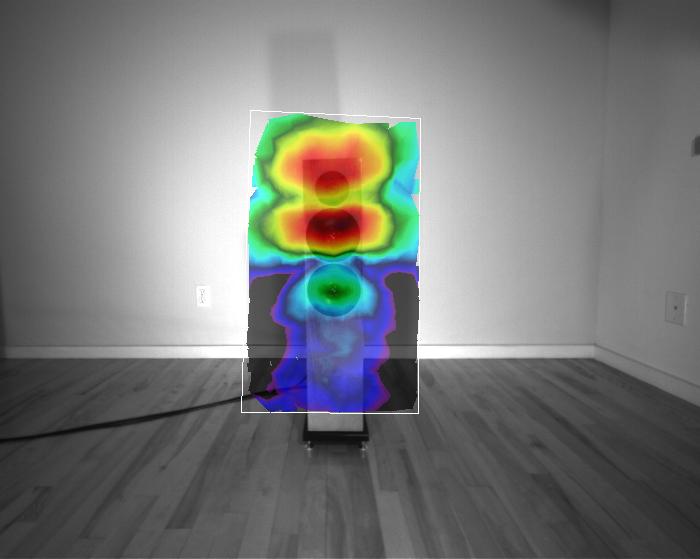

    Noise from a speaker

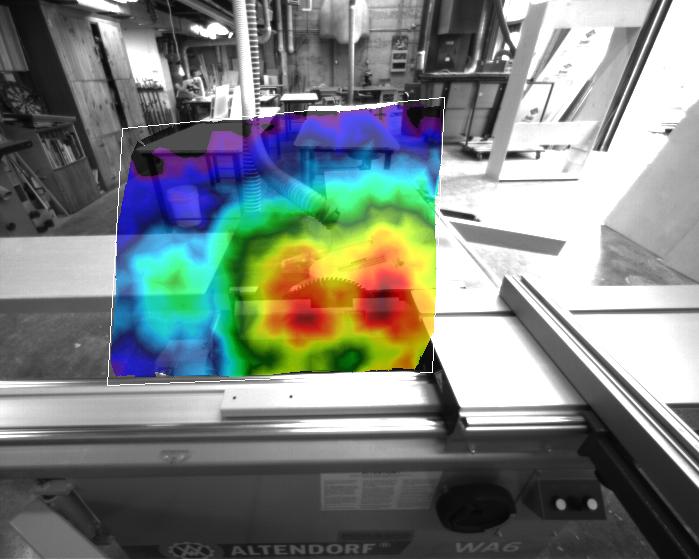

    Noise from a table saw

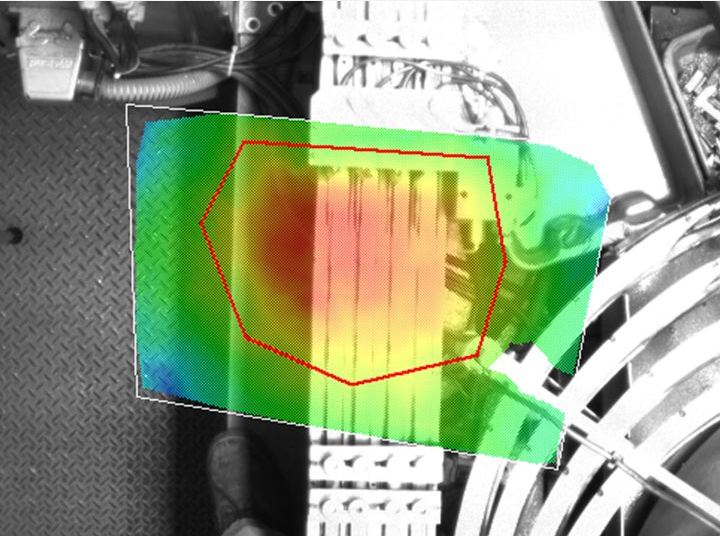

    Noise-producing component in an assembly line


    Demonstration Video:

    Loading...

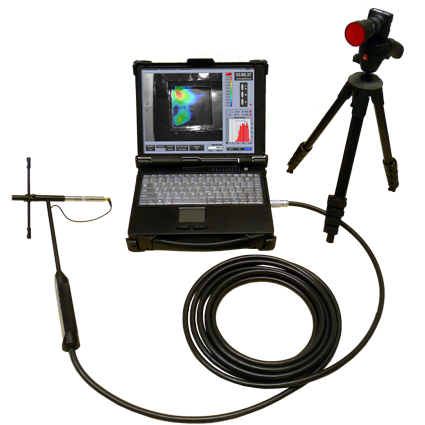

    System Components:
    • Intensity probe equipped with a developed tracking device, measure controls and indicators
    • High speed USB camera used to acquire both background pictures and to probe instantaneous coordinates
    • Rugged laptop PC with on-board DSP and pre-installed software
    • Additional software installer that can be installed on any other computer for post-processing
    • Rugged transport case

    Download:
    Specsheet I-Track 2011
    I-Track User guide ver 3.04
    Sound Intensity Mapping

    OPUSTM Suite
    All the OPUSTM suite can be used with the I-Track hardware.
     Click here to see all OPUSTM Modules



    Developed with the support of the Institut de Recherche Robert-Sauvé en Santé et Sécurité du Travail (IRSST)
