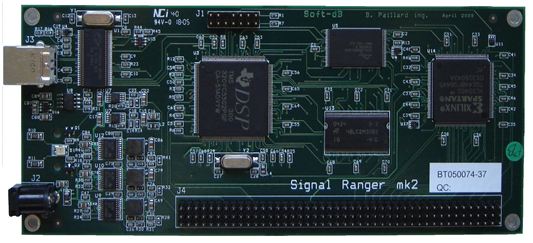

The Signal Ranger MK2 is a fixed point DSP board featuring a 300 MHz TMS320C5502 DSP, a 400 kgates SPARTAN 3 FPGA, and a high-speed USB 2 interface.
The DSP board may be used while connected to a PC or in in stand-alone mode, executing embedded DSP code (see Signal-Ranger DDCI interface).
The Signal Ranger MK2 DSP board can be used with the expansion boards SR2_Analog_16 or with the SR2-A810 (see Optional expension board below)
Price : 950$ (CAD)*
Main features:
300 MHz TMS320C5502 DSP 16-bits fixed point
XC3S400 FPGA 63 user-configurable I/Os
High-speed USB 2 interface
64 Kbytes on-chip (DSP) double-access RAM
4 Mbytes external 75 MHz SDRAM
2 Mbytes external Flash ROM
Can be stand-alone unit or connected to a PC
high-speed USB 2 interface
DDCI Interface (Development to Deployment Code Instrumentation)
SR-ANALOG16 • 16 I/0, 16 bits, SNR 88 dB
• 0 to 26 kHz (104 kHz w/o anti-aliasing filter)
SR-A810
• 8 analog I/O capable of operating at up to 150 kHz
• ±10V dynamic range
• Low noise and very high DC stability
• Very low input-output group-delay
