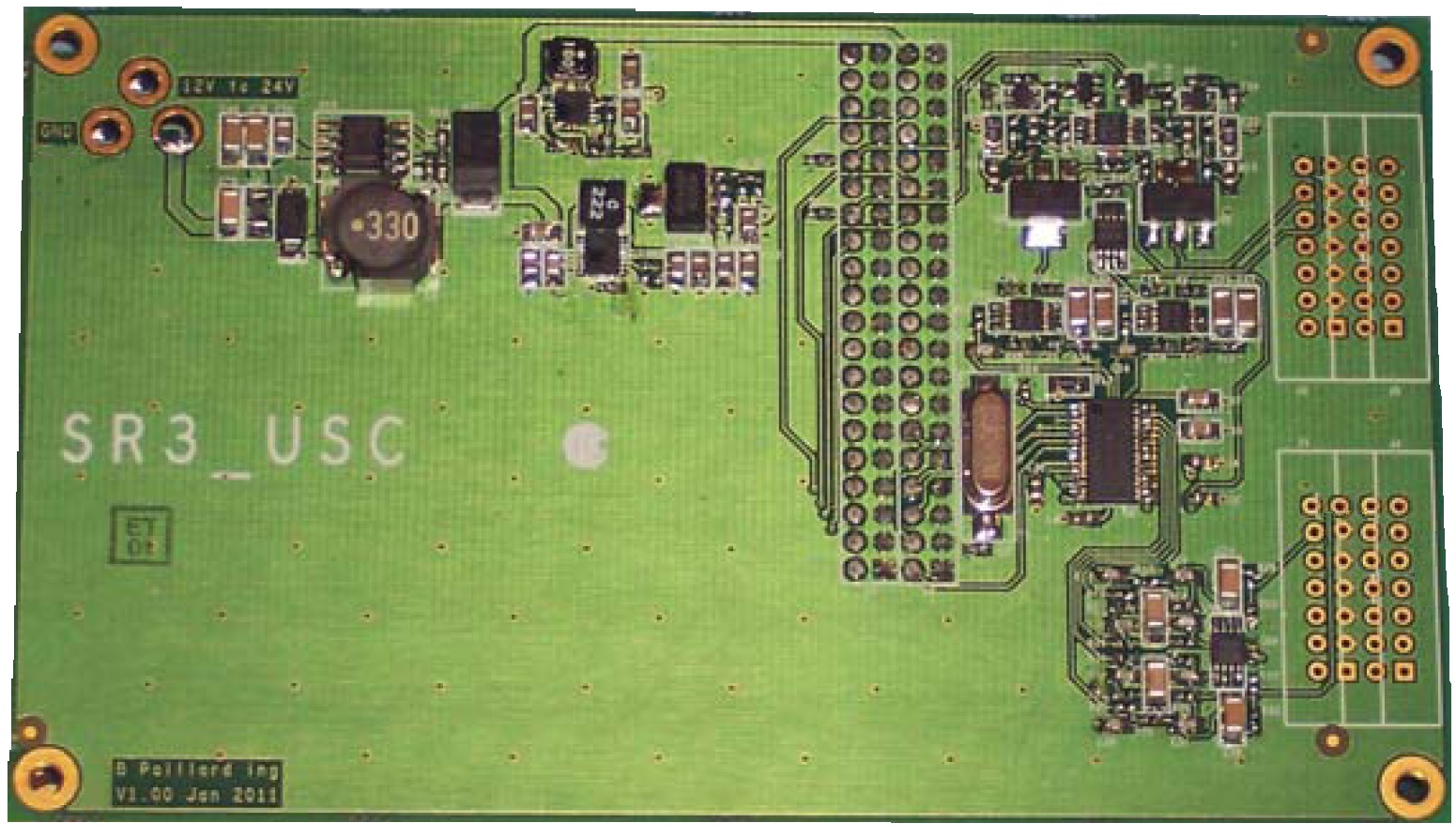

| SR3-USC |
 |
The SR3-USC acquisition board can be used with the DSP board Signal Ranger Mk3. This highresolution
acquisition board allows sampling on 2 channels at 192 kHz, which is ideal for ultrasound
applications. The board comes with DSP driver and example codes.
Price : coming soon...*
Main features:
- 2 Single ended inputs (+-2.5V)
- 2 Single ended outputs (+-2.2 V)
- Input Coupling: AC or ICP
- Output coupling: AC
- Resolution: 24 bits
- Sampling rate: 48 kHz, 96 kHz, 192 kHz
- Analog input bandwidth: up to 96 kHz
Documentation & Download:
* Price subject to change. Educational, OEM & Distributor price available. Please contact us.
|
|
| |
|
|
|
