Sound Level Sensor

The SmartSMS sound masking system is equipped with an adaptative adjustment system.

The ambient noise in a zone is measured and the masking sound level is adjusted based on this measurement.

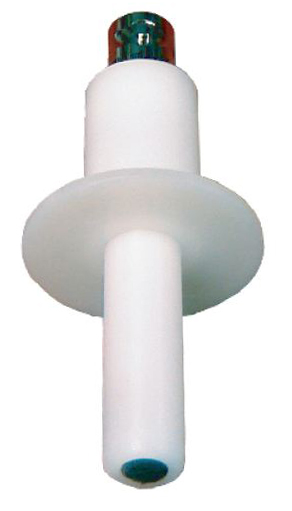

Soft dB's SMS-SEN Sound Level Sensor measures the ambient noise level in a zone. It is installed through a 9.5 mm (3/8") hole in acoustic tile. In the case of an open ceiling, it can be attached to the structure.

Typically, one sensor covers 1 000 sq ft and up to 8 sensors can be installed in one zone.

Specifications:
  • Sensitivity: -35±4 dB (0 dB = 1V/pa, 1 kHz)
  • Directivity: Omnidirectional
  • Frequency range: 20-20,000 Hz
  • Diameter: 3/8 in.
  • Length: 2¾ in. approx.
  • Standard operation voltage: 3 volts
  • Current consumption: Max. 0.5 mA
  • S/N ratio: More than 62 dB
  • Measurement range: 35 to 95 dB at 17 mV/Pa
  • Connector Type: BNC

Documentation:
Specsheet SMS-SEN)
